Fire grade flame retardant V-0 plus glass fiber 30% connector application PBT Zhangzhou Changchun 4130-104K
PBT Zhangzhou Changchun 4130-104K
1 kilogram
FOB Shenzhen
Quantity
- Place of Origin:Fujian, China
- Brand Name:Zhangzhou Changchun
- Model Number:PBT Zhangzhou Changchun 4130-104K
- Product name:PBT Zhangzhou Changchun 4130-104K
- Application:Suitable for connector cooling fan socket raw material
- Grade:Injection molding grade
- Shape:Particle
- Package:25 KG/Bag
- MOQ:25 KG
- Quality:High
- Characteristic:Add 30%
- Keywords:Flame retardant and high temperature resistant
- Material:Plastic Raw Material
Company Profile

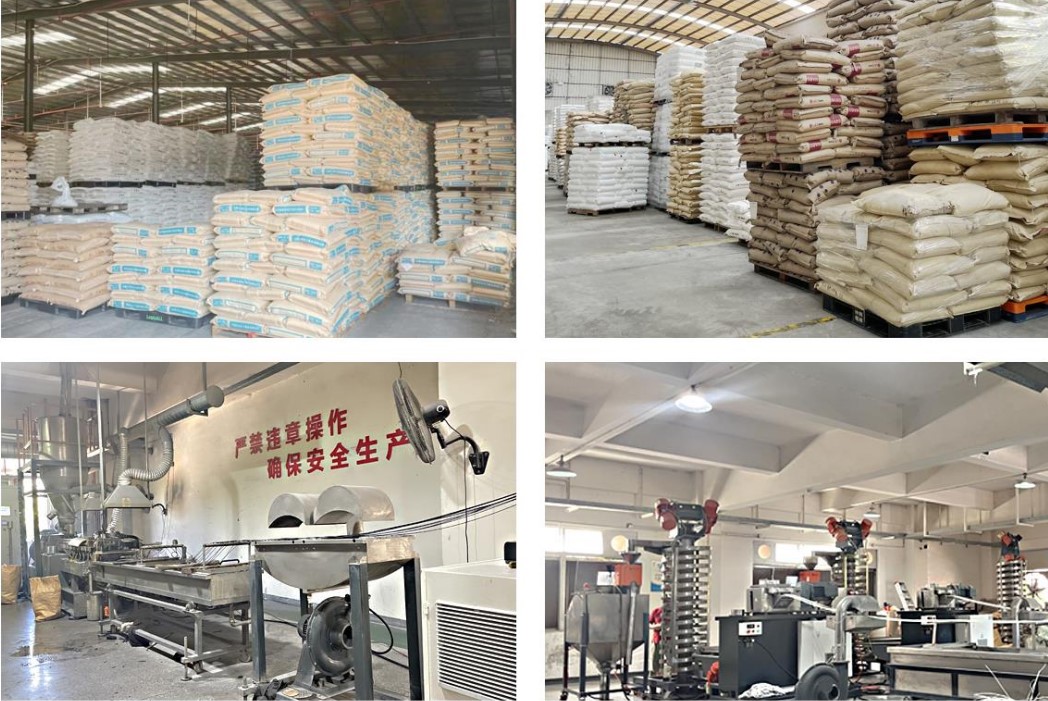

Our workshop&wearhouse

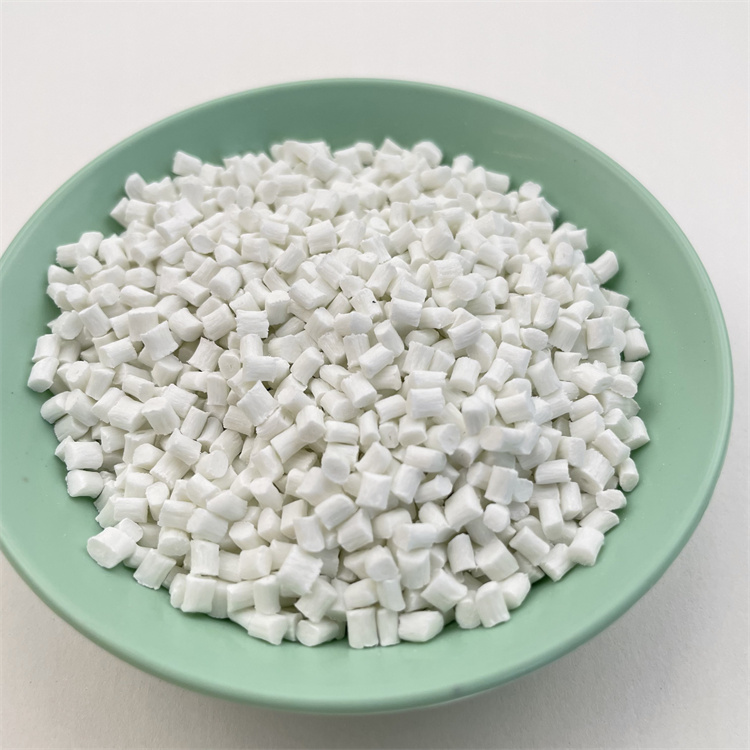

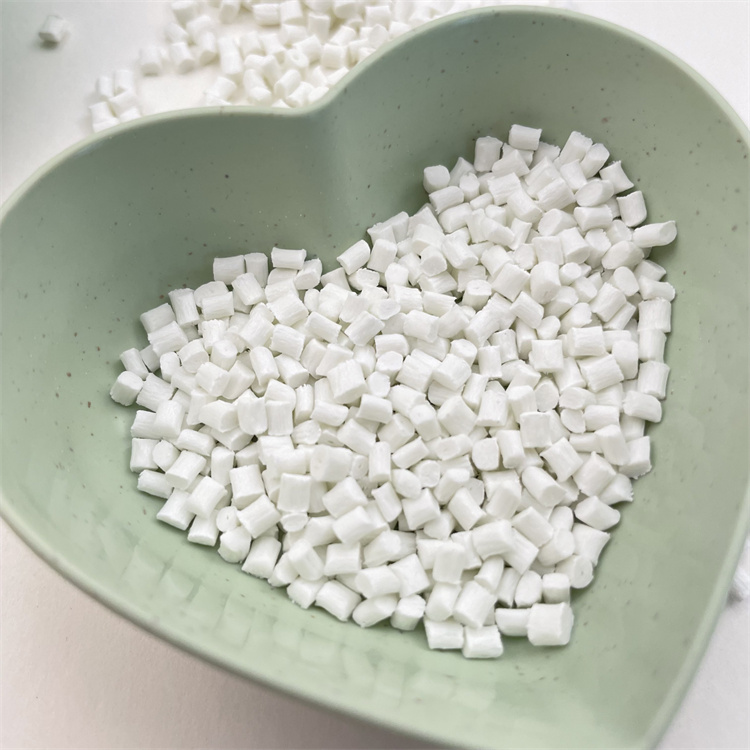

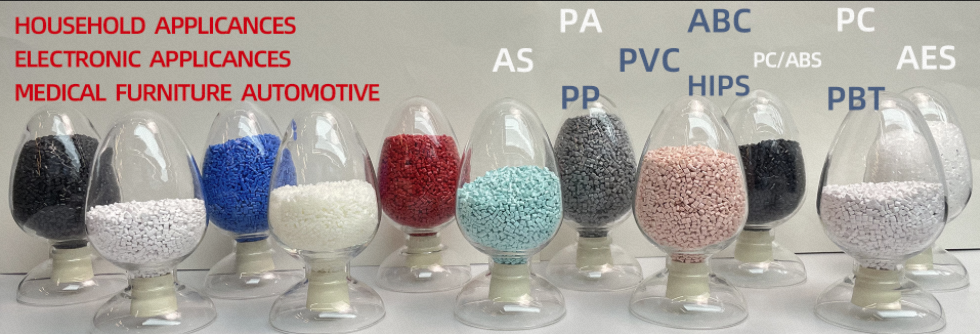

Our products
TDS
Physical properties of | rating | System of units | The test method |
The density of | 1.64 | g/cm3 | ISO 1183 |
Melt flow rate (melt flow rate) (250°C/2.16 kg) | 13 | g/10 min | ISO 1133 |
shrinkage | ISO 294-4 | ||
Vertical flow direction | 0.80 to 1.2 | % | ISO 294-4 |
Flow direction | 0.30 to 0.50 | % | ISO 294-4 |
Mechanical properties of | rating | System of units | The test method |
Tensile modulus (23°C) | 10000 | MPa | ISO 527-2 |
Tensile stress (fracture, 23°C) | 120 | MPa | ISO 527-2 |
Tensile strain (breaking, 23°C) | 2.2 | % | ISO 527-2 |
Bending modulus (23°C) | 8300 | MPa | ISO 178 |
Bending stress (23°C) | 180 | MPa | ISO 178 |
Impact properties | rating | System of units | The test method |
Notched impact strength of simply supported beam (23°C) | 8.5 | kJ/m2 | ISO 179/1eA |
Thermal performance | rating | System of units | The test method |
Thermal deformation temperature | |||
0.45MPa, not annealed | 220 | ° c. | ISO 75-2/B |
1.8MPa, not annealed | 205 | ° c. | ISO 75-2/A |
The melting temperature | 225 | ° c. | ISO 11357-3 |
Electrical properties | rating | System of units | The test method |
Resistivity of surface | 1E+13 | ohms | IEC 60093 |
Resistivity of volume | 1.00E+15 | Ohms, cm | IEC 60093 |
Dielectric strength (2.00mm) | 19 | kV/mm | IEC 60243-1 |
flammability | rating | System of units | The test method |
UL flame retardant rating | V-0 | UL 94 | |
The injection | rating | System of units | |
The drying temperature | From 120 to 140 | ° c. | |
The drying time | 4 | hr | |
Processing (melt) temperature | From 240 to 270 | ° c. | |
Mold temperature | 60.0 to 100 | ° c. |

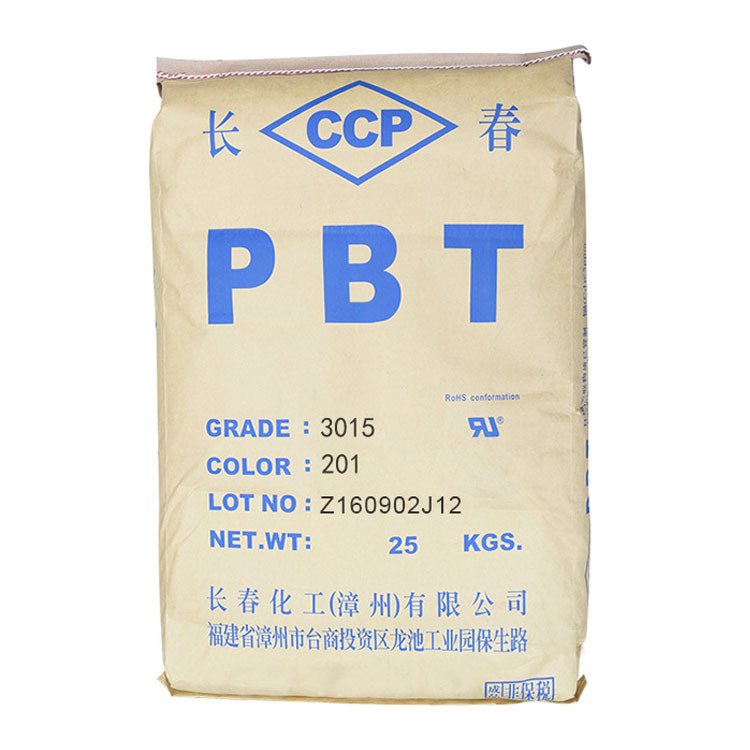

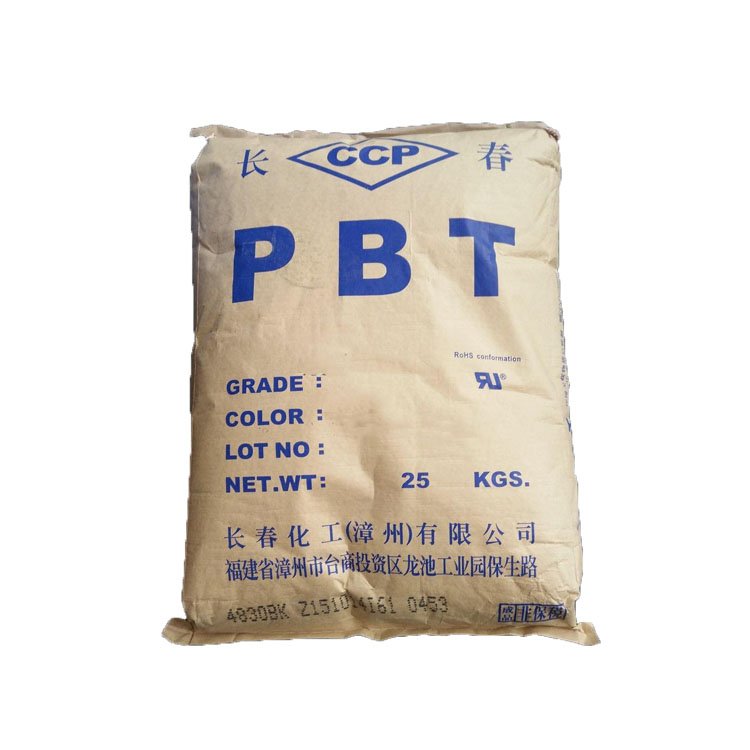

Product packaging
To better ensure the safety of your goods, professional, environmentally friendly, convenient and efficient packaging services will be provided.
Customer Photos
FAQ
1.Are you a factory or a trading company?
A: Our company is a trade company, acting sales of various plastic materials, such as: ABS, PC/ABS, PC, PBT, PA6 / PA66, POM,
PEEK, such as plastic particles
2. About payment terms
A: T/T,Trade Assurance.
3. About Trade Term
A: We accept EXW/FOB/CIF as trade term.
4. Do you provide samples ? is it free or extra ?
A: Yes, we could offer the sample for free charge but do not pay the cost of freight
5. How about your delivery time?
A: Generally it is 3 days ship out , if we have stock. If not, maybe need 15-20 days to arrange the shipping.
6. Do you test all your goods before delivery?
A: Yes, we have 100% test before delivery，provide certificate of qualification.
